Model
|
|
|||
|---|---|---|---|---|
|
Type
|
Mid-tine®
|
Mid-tine®
|
Mid-tine®
|
Rear-tine
|
|
Engine
|
B&S or Honda
|
B&S or Honda
|
B&S or Honda
|
B&S or Honda
|
|
Weight (lbs.)
|
98-103
|
138-143
|
164-168
|
432
|
|
Garden Size
|
Small-Medium
|
Medium-Large
|
Large
|
Large
|
|
Tilling Depth
|
8″
|
12″
|
12″
|
10″
|
|
Standard Tilling Width
|
18″
|
26″
|
26″
|
22″
|
|
Garden Type
|
New or Mature
|
New or Mature
|
New or Mature
|
New or Mature
|
|
MSRP*
|
$1,349 – $1,699 |
$1,549 – $1,849
|
$1,799 – $2,099 |
$4,399 – $4,799
|
|
|

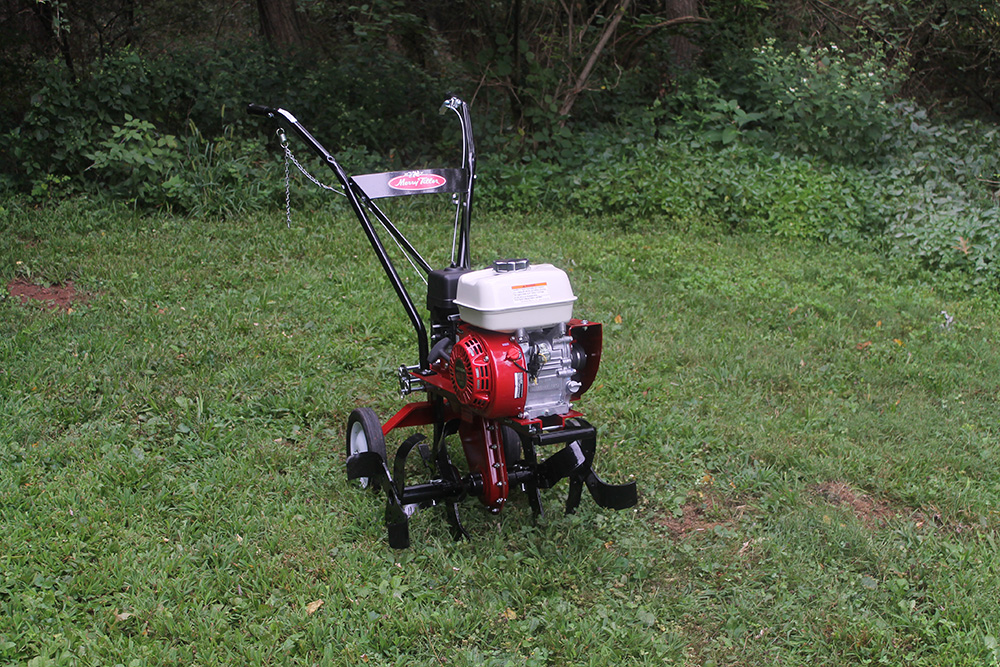

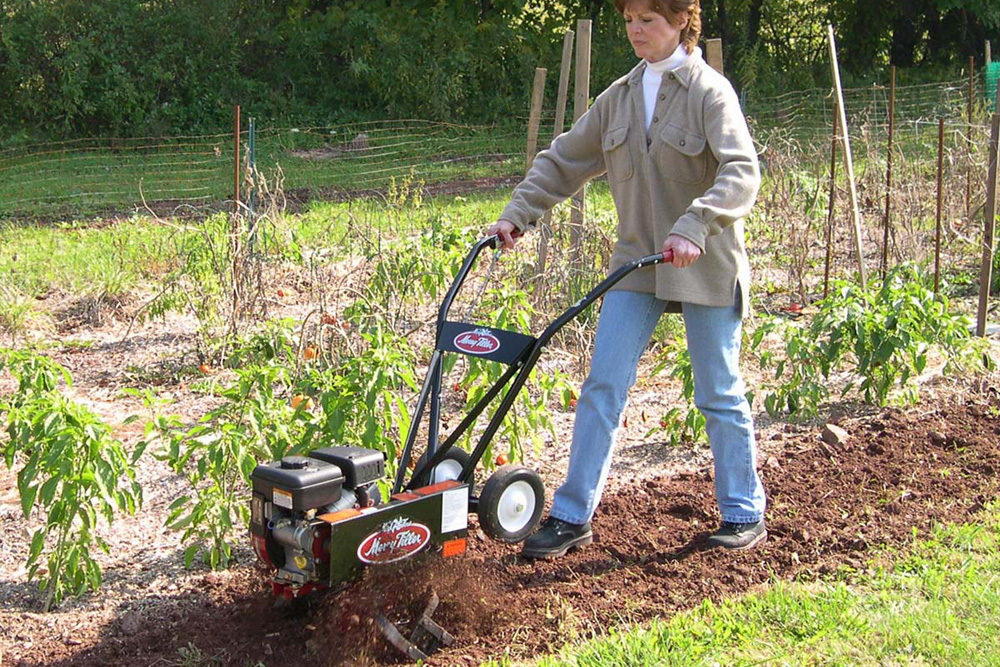

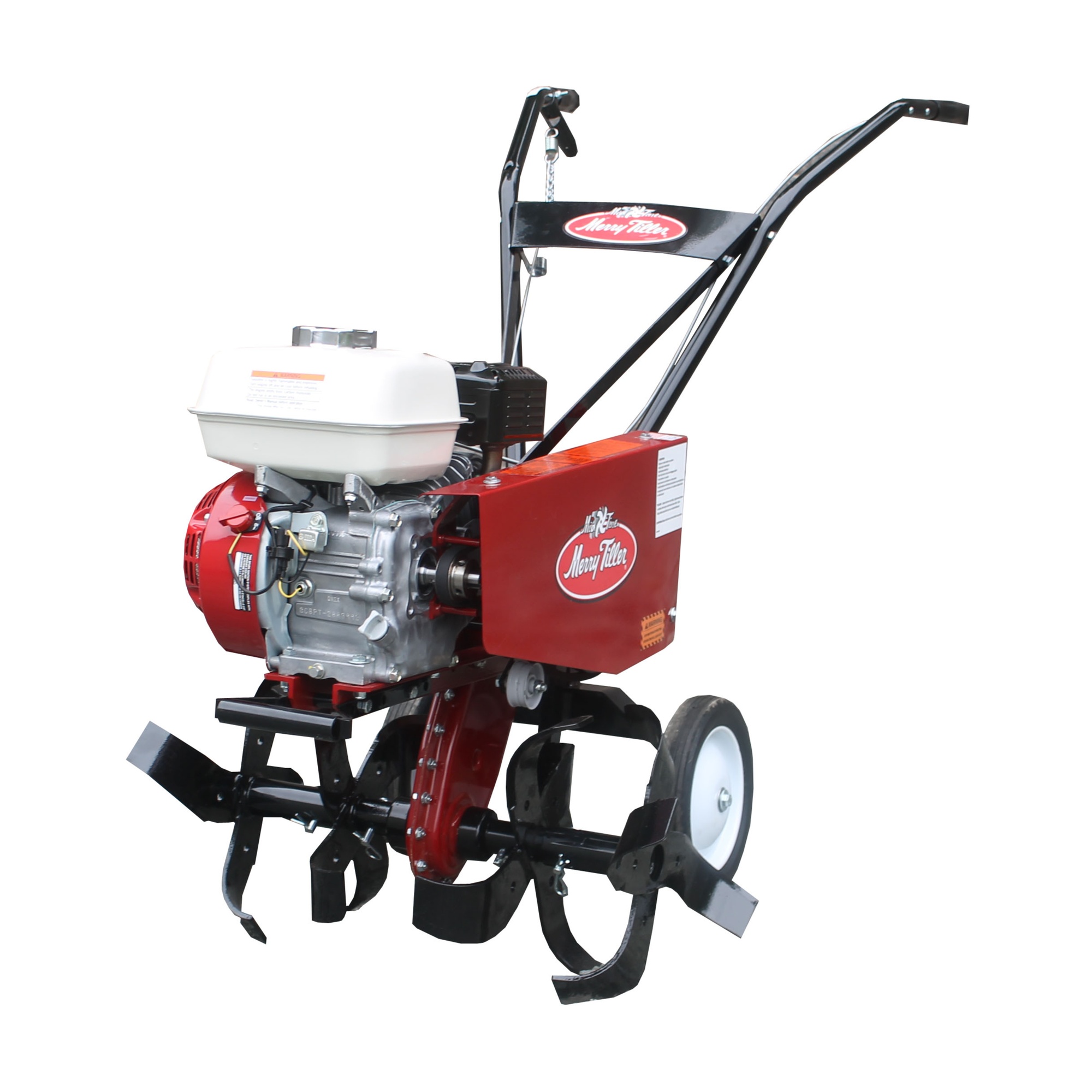

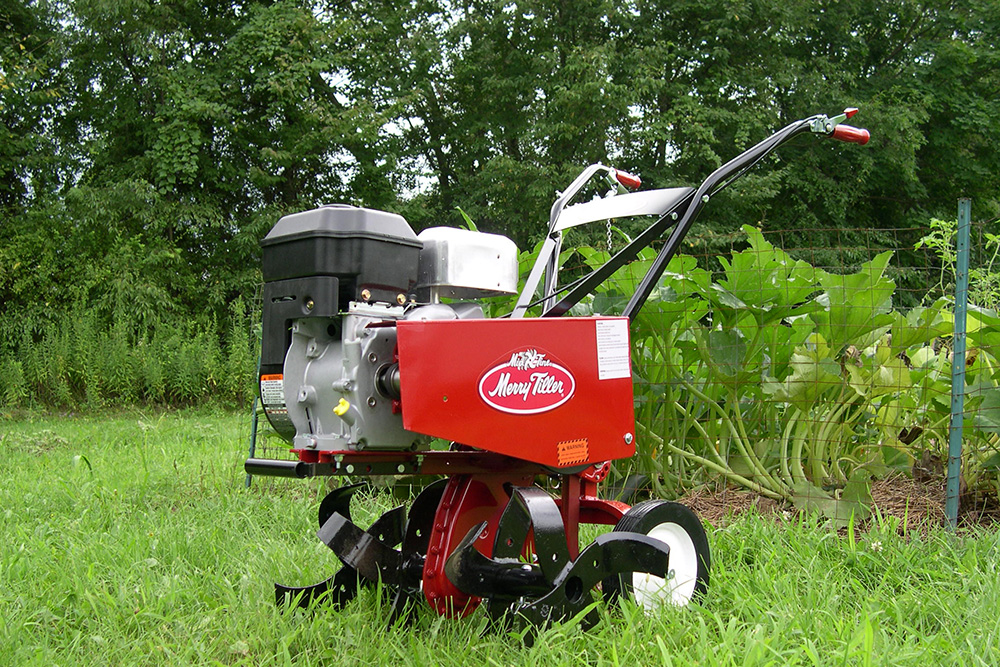

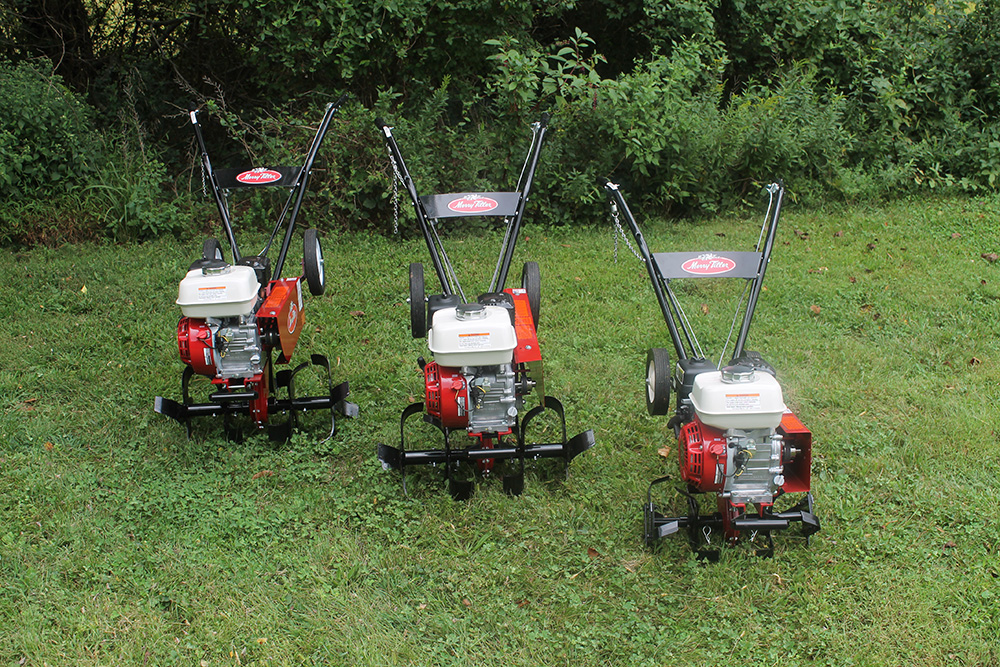

Merry Tillers®
The Original Mid-Tine® Tiller and still the Best!!!
Servicing the gardening enthusiast, the landscaping community, and the rental industry, the MacKissic Merry Tiller can provide the right solution to your tilling needs.

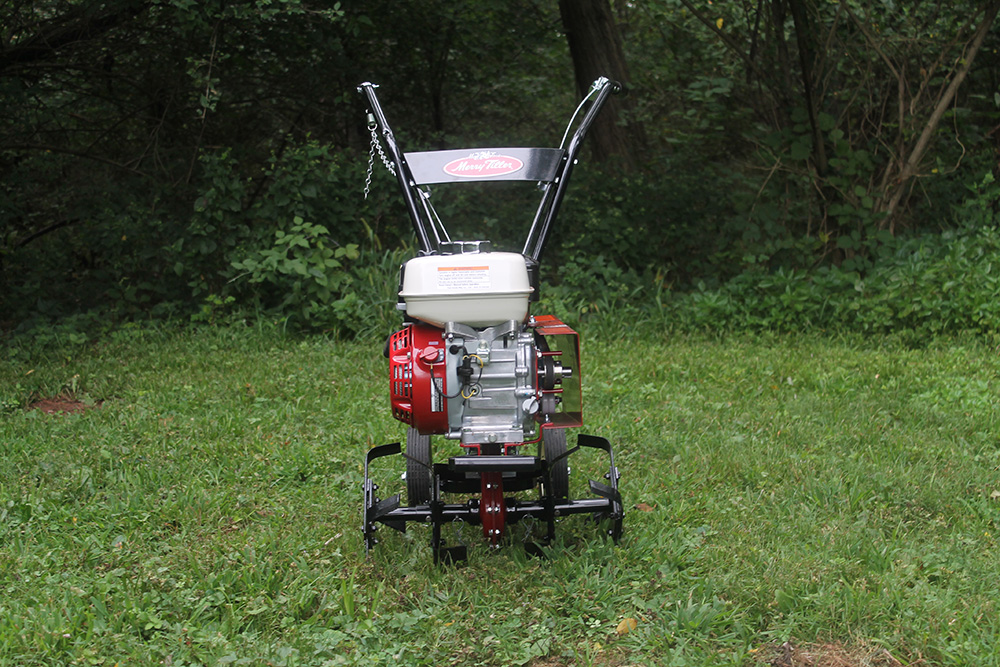

The Merry Tiller’s mid-tine design provides better balance and even weight distribution over the tines which provides faster and deeper tilling. The all-steel construction provides strength and long-lasting durability. The tine transmission is comprised of heavy-duty roller chains and heat-treated and hardened sprockets. A “00” grease bath lubricates the transmission parts for years of useful service. Our steel plate hitch, structural angle iron frame, and all welded tines provide unrivaled value.
*Note: Prices shown are suggested retail and do not include freight, dealer set up, or applicable local taxes in US Dollars. Prices and specifications are subject to change as new developments and improvements are made.
Parts List and Schematics
Accessories
|
MT4R, MT4H and MT550IC (Older Models: MT475) |
|||
|
Part Number
|
Description
|
Weight
|
MSRP*
|
|---|---|---|---|
| MT3157 | Slasher tine assemblies, right & left inside | 8 lbs. | $190.00 |
| MT3158 | Slasher tine assemblies, right & left outside | 8 lbs. | $190.00 |
| MT3405 | Lift handle kit | 3 lbs. | $53.00 |
|
ST800/IC, ST6R, and ST5.5H |
|||
|
Part Number
|
Description
|
Weight
|
MSRP*
|
|---|---|---|---|
| MT951 | Finger tine assemblies, right & left inside | 14 lbs. | $315.00 |
| MT952 | Finger tine assemblies, right & left outside | 14 lbs. | $315.00 |
| MT956 | Pick tine assemblies (1 set) | 21 lbs. | $425.00 |
| MT1701 | Slasher tine assemblies, right & left inside | 15 lbs. | $210.00 |
| MT1702 | Slasher tine assemblies, right & left outside | 15 lbs. | $210.00 |
| MT1703 | Slasher tine extension assemblies, right & left | 19 lbs. | $210.00 |
| MT1812 | Bolo tine assemblies, right & left inside | 19 lbs. | $230.00 |
| MT1813 | Bolo tine assemblies, right & left outside | 19 lbs. | $230.00 |
| MT1815 | Bolo tine assemblies, right & left outside, rear tine | 19 lbs. | $230.00 |
| MT1816 | Bolo tine assemblies, right & left inside, rear tine | 19 lbs. | $230.00 |
| MT3157 | Minnie Slasher tine assy., left & right inside | 8 lbs. | $190.00 |
| MT3158 | Minnie Slasher tine assy., left & right outside | 8 lbs. | $190.00 |
| MT3404 | Lift handle kit | 3 lbs. | $53.00 |
| MT3405 | Lift handle kit (fits Minnie) | 3 lbs. | $53.00 |
| MT7801 | 8″ Furrower | 4 lbs. | $53.00 |
| MT7802 | 10″ Furrower | 5 lbs. | $63.00 |
| MT7875 | Adjustable plow bar | 9 lbs. | $159.00 |
| MT7878 | Wheel & drag bar w/ spring w/ pin system | 1 lbs. | $85.00 |
|
IT800IC, IT6R, and IT5.5H |
|||
|
Part Number
|
Description
|
Weight
|
MSRP*
|
|---|---|---|---|
| MT951 | Finger tine assemblies, right & left inside | 14 lbs. | $315.00 |
| MT952 | Finger tine assemblies, right & left outside | 14 lbs. | $315.00 |
| MT956 | Pick tine assemblies (1 set) | 21 lbs. | $425.00 |
| MT1701 | Slasher tine assemblies, right & left inside | 15 lbs. | $210.00 |
| MT1702 | Slasher tine assemblies, right & left outside | 15 lbs. | $210.00 |
| MT1703 | Slasher tine extension assemblies, right & left | 19 lbs. | $210.00 |
| MT1812 | Bolo tine assemblies, right & left inside | 19 lbs. | $230.00 |
| MT1813 | Bolo tine assemblies, right & left outside | 19 lbs. | $230.00 |
| MT3404 | Lift handle kit | 3 lbs. | $53.00 |
| MT7801 | 8″ Furrower | 4 lbs. | $53.00 |
| MT7802 | 10″ Furrower | 5 lbs. | $63.00 |
| MT7875 | Adjustable plow bar | 9 lbs. | $159.00 |
| MT7878 | Wheel & drag bar w/ spring w/ pin system | 1 lbs. | $85.00 |
|
RT1350IC, RT93R & RT83H |
|||
|
Part Number
|
Description
|
Weight
|
MSRP*
|
|---|---|---|---|
| MT1815 | Bolo tine assemblies, right & left outside | 19 lbs. | $230.00 |
| MT1816 | Bolo tine assemblies, right & left inside | 19 lbs. | $230.00 |
Parts
Click for a Tiny Tiller parts list and exploded view. (pdf)

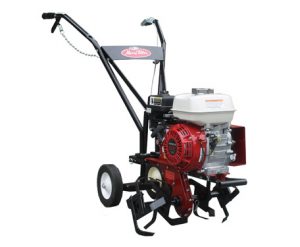

Click for a Minnie Tiller parts list and exploded view. (pdf)

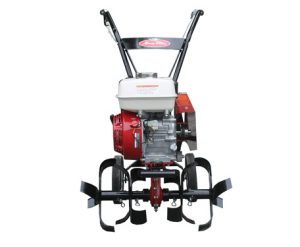

Click for a Suburban Tiller parts list and exploded view. (pdf)

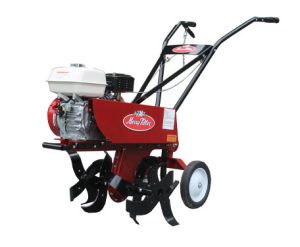

Click for a International Tiller parts list and exploded view. (pdf)

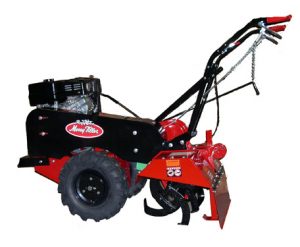

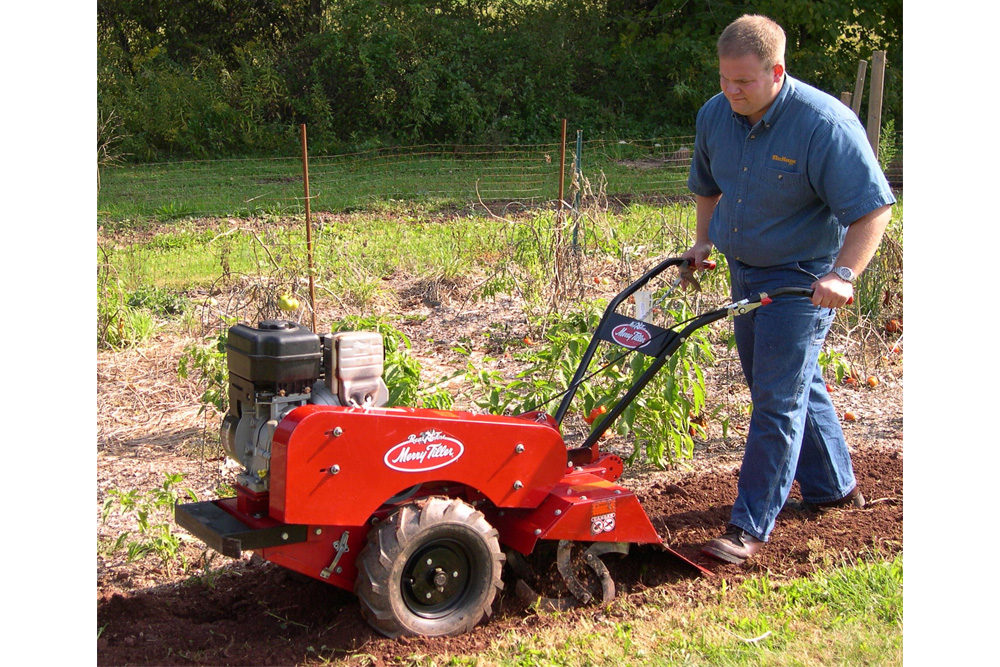

Click for a Rear Tine Tiller parts list and exploded view. (pdf)
