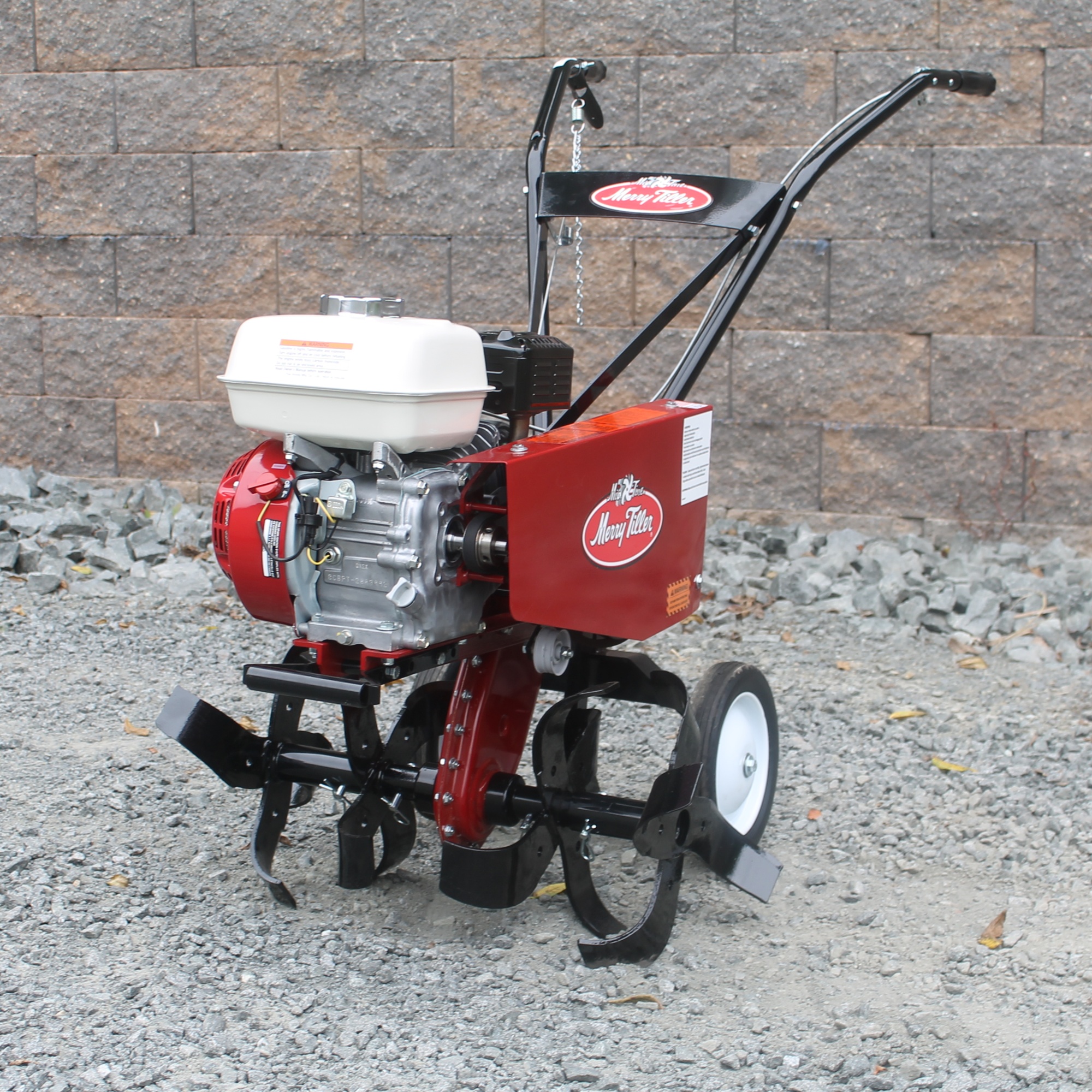

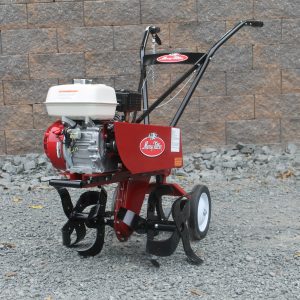

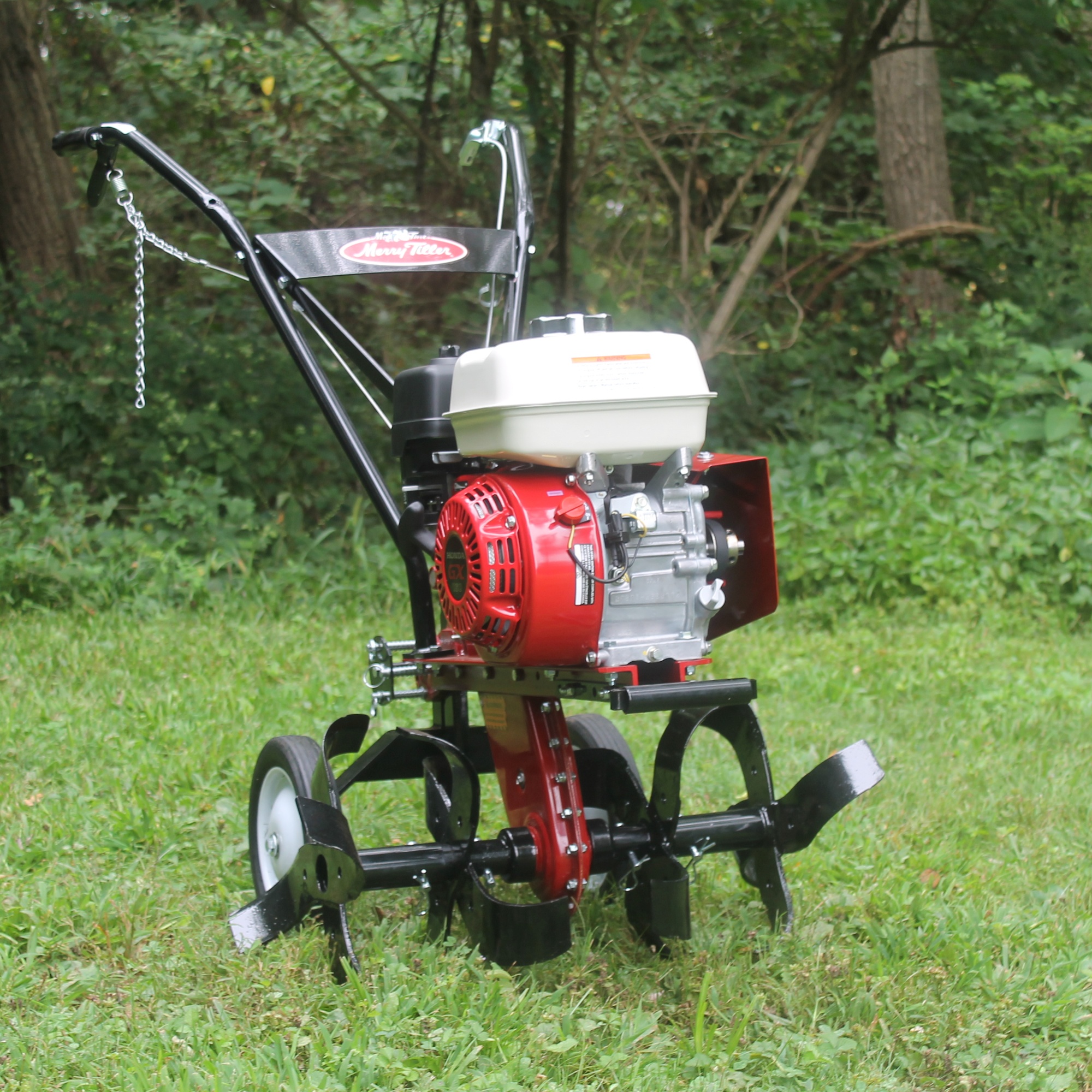

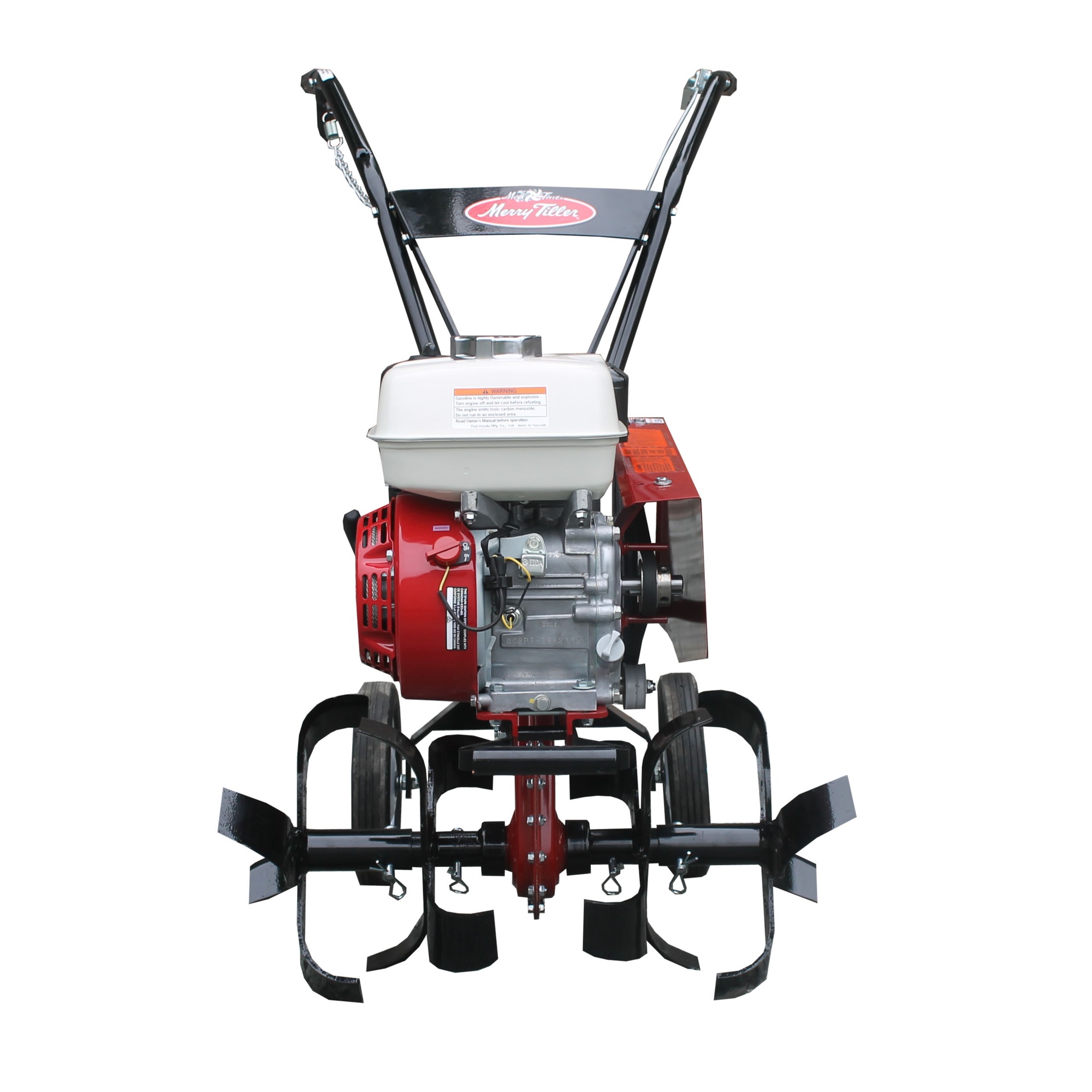

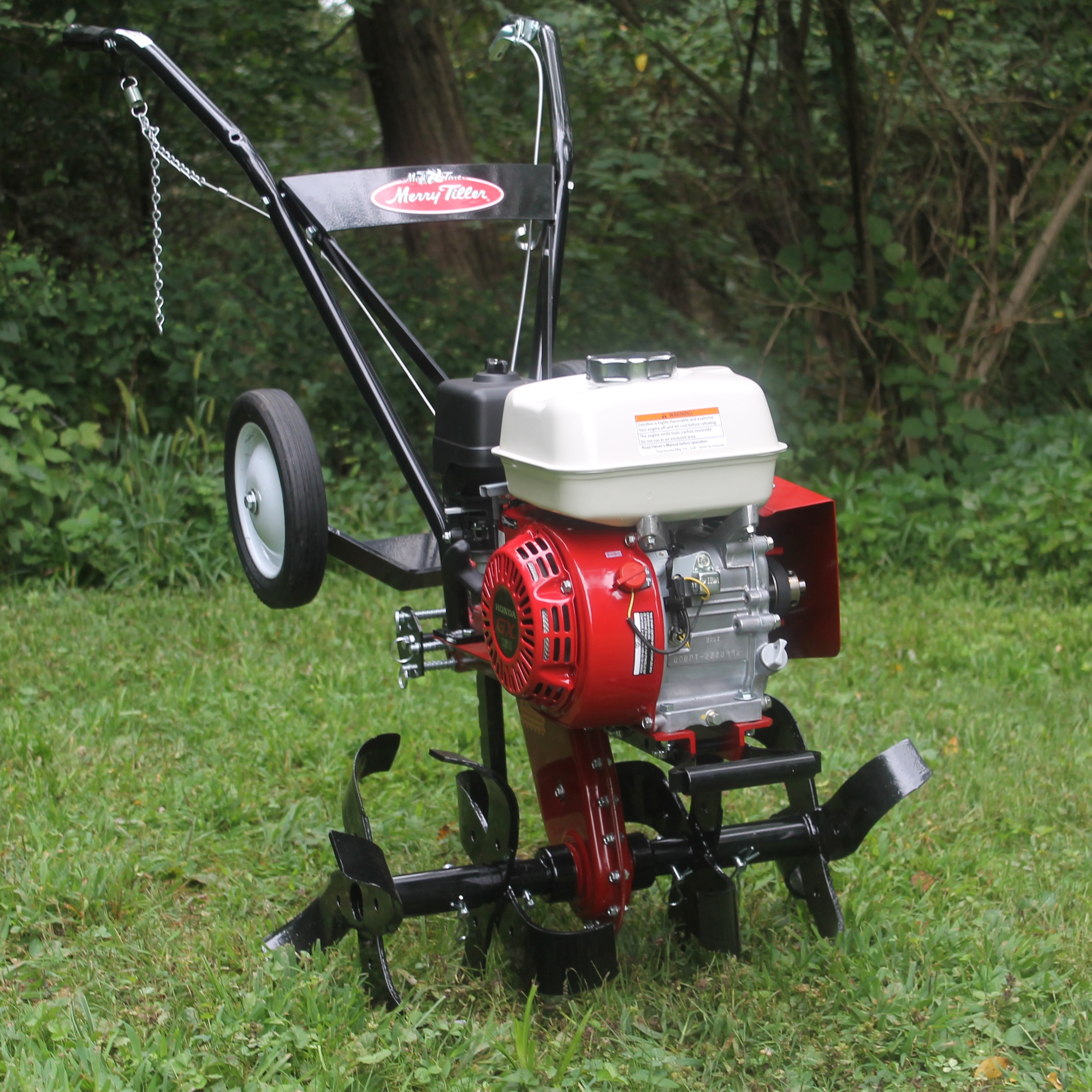

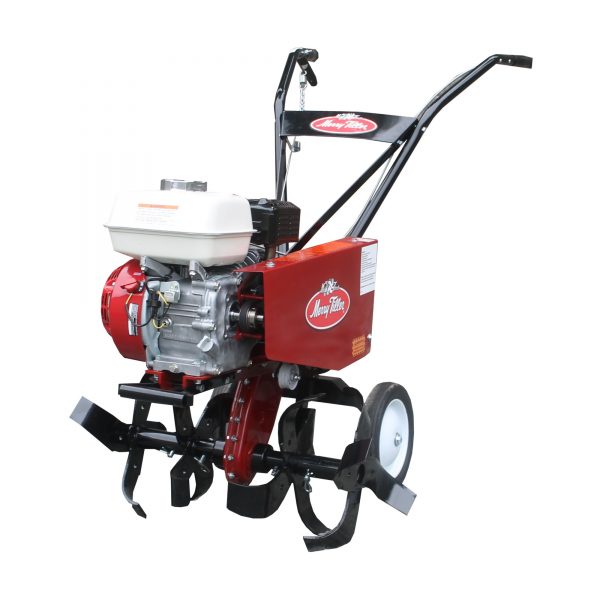

Merry Tiller® Mid-Tine® Suburban Tiller


  • Mid-Tine® Design
  • Forward Rotating Tines
  • Standard Tilling Width – 26″
  • Tilling Depth – 12″
  • Made in the USA
SKU: N/A Category:

Roto Tiller with a Mid-Tine Design

The Suburban Tiller is the choice of serious gardeners. Not our smallest roto tiller but the Mid-Tine® Suburban does offer superior handling and better weight balance when compared to other front-tine tillers.  Whether breaking new ground, expanding your existing garden, or just cultivating for the upcoming season, the Suburban Merry Tiller is the right choice when small roto tillers just won’t do.

The Suburban features a double gear reduction transmission allowing the tiller to bust through just about any ground. The drag bar and wheel are easily adjusted with the simple pull of a pin. Pull one pin to release the wheels, lift them to the up position and insert another pin. The drag bar can be adjusted for different soils.

Once the wheels are up and the drag bar is down, adjust the throttle from the operator’s position, squeeze the clutch handle and start tilling. The Suburban tills a 26-inch wide swath and can till up to 12 inches deep.

Made in the USA!

The Original Roto Tiller Story

by the Backyard Gardner

Find Roto Tillers for Sale through one of our distributors here. Or you can buy directly through our website. Many of those partners also can offer roto tiller rentals.



ST750IC ST6.5V ST5.5H
B&S XR750 Professional Series Vanguard Honda GX160
HP 5 6.5 4.8
Gross Torque (FT-LBS) 7.5 N/A 7.6
Displacement CC’s 163 203 163
Lubrication System Splash Splash Splash
Starting Manual Manual Manual
Transport Walk Behind Walk Behind Walk Behind
Type Mid-Tine® Mid-Tine® Mid-Tine®
Garden Size Medium – Large Medium – Large Medium – Large
Garden Type New or Mature New or Mature New or Mature
Tines Slasher Slasher Slasher
Standard Tilling Width 14″ or 26″ 14″ or 26″ 14″ or 26″
Optional Tilling Width 37″ 37″ 37″
Tilling Depth 12″ 12″ 12″
Transmission Roller Chain & Sprocket Roller Chain & Sprocket Roller Chain & Sprocket
Frame Structural Steel Structural Steel Structural Steel
Drag Bar Adjustable Adjustable Adjustable
Hitch Cast Iron Cast Iron Cast Iron
Lenght 54″ 54″ 54″
Width 26″ 26″ 26″
Height 40″ 40″ 40″
Machine Weight (LBS) 126 131 127
Shipping Weight (LBS) 156 161 157
Engine Warranty 2 Year 3 Year 3 Year
Machine Warranty 2 Year Consumer

1 Year Commercial

2 Year Consumer

1 Year Commercial

2 Year Consumer

1 Year Commercial

Additional information

Weight N/A
Dimensions N/A
  • To buy locally, please check for dealers on our Dealer Locator.
  • If ordering factory direct our goal is to ship each order within 48 hours. Sometimes we run out of stock and in these cases it may take one to two weeks to fill your order.
